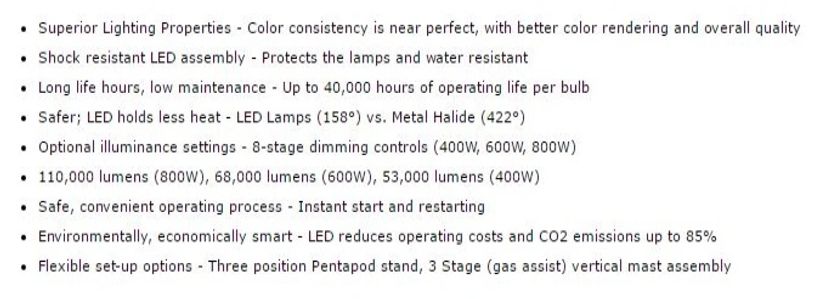

GLOBUG LIGHT FEATURES
.
gb8led 800 watt globug light
The GloBug Model GB8LED is a general purpose, portable, glare-free lighting system - Typical applications for these type of lighting system includes :
- Construction sites
- Police forensic investigations
- Police DUI sobriety checks
- Accident scene investigations
- Search and rescue
- Emergency road crews
- Night time parties
- Movie set lighting
- Road work flagger lighting
- Paving machine light
The GloBug lighting system is comprised of LED lamps in a shock-resistant, waterproof LED assembly. The LED assembly has an output of 110,000 lumens @800W. The LEDs have a long operating life of up to 40,000 hours. The lighting system has a 3-stage dimming control (400W, 600W and 800W). Setup The GB8LED lighting system can be set up quickly and easily. Pentapod legs can be deployed in one quick easy step and can be adjusted to two different heights. In addition the unit is equipped with a gas-assist mast lowering system. This system allows the mast to be retracted slowly so that the mast will not fall rapidly when released. This feature reduces the amount of vibration or shock to the lamp. Transport The GB8LED lighting system can be transported (Figure 3) quite easily in two carrying cases. For ease of service or transport, the lamp assembly is equipped with a quick-disconnect connector that allows the lamp fixture to be removed quickly. This feature is extremely useful during transport of the lighting system. It is always best to remove the lamp and pack it safely so it will not be damaged.
COMPONENTS
Image shows the components of an assembled GB8LED lighting system. The function of each component is described below:
1. Balloon — This balloon is made of heat-resistant polyester, with a diameter of 43 inches (1092 mm).
2. Balloon Cover/Carrying Case — When zipped, this protective cover acts like a carrying case. The complete lamp assembly is enclosed within the cover-carrying case. Allow a sufficient amount of time for the lamp to cool down before covering balloon. The possibility exists of the balloon getting burned.
3. Mast — Three stage gas-assist mast. Maximum mast height is 11.25 ft. (3.42 meters). When raising the mast, always be on the lookout for overhead obstructions.
4. T-Handle Bolt Lock — Always tighten this lock to hold the lamp/balloon securely in place before raising mast.
5. Weight Support Hook — To add additional weight to the tripod and make the tripod more stable in windy conditions. Place a sandbag or similar weight onto this hook.
6. Pentapod — Unbuckle velcro strap securing pentapod legs (5), push down on any leg until all legs are fully deployed. To place legs in the stowed position, pull upward on velcro strap while pushing down on pentapod pole. Pull all legs upward and secure with velcro strap.
7. Lamp Guard — This guard (cage) protects the lamp from being hit by objects.
8. Lamp — Comprised of LED lamps. The lamps have three stages of brightness: 800W, 600W, and 400W.
9. AC Power Cable — Connect this cable to a 120 VAC, 60 Hz power source.
10. Pentapod Carrying Case — Use this case when transporting of the tripod is require
Always store tripod in these carrying cases
